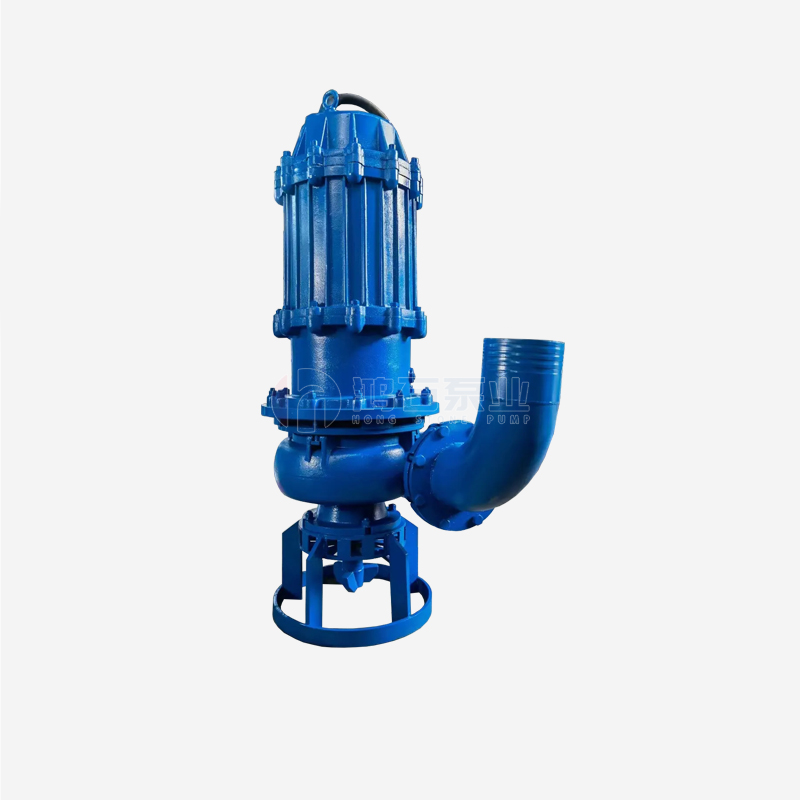

ZJQ Submersible Slag Pump

ZJQ series pump is developed and improved from ZJL (vertical slurry pump) and overcome its deficiency. What's more, the pumps are comprehensively optimized and innovatively designed in the hydraulic model, sealing technology, mechanical structure, and protection control. This series has simple structure, easy installation, safe and reliable use, and long life. The pump does not need to construct a complex ground room and fixtures when it is submerged. That makes the site cleaner without noise and vibratio.

• Model：ZJQ series pump
• Discharge Size：1 inch (25 mm)~18inch (450 mm)
• Suction Size：1.5 inch (38mm)~20inch (500 mm)
• Flow Rate：10.8~5400(m3/h)
• Head：5~68(m)
• Max. Eff η(%)：35~85
• Impeller Diameter：152~965(mm)
• Max Particle Size：14~90(mm)
• Speed：200~3400(r/min)
• Max. Power：15~1200(KW)
• NPSH：2~10 (m)
• Weight：91~6400(kg)

ZJQ series pump is developed and improved from ZJL (vertical slurry pump) and overcome its deficiency.

This series is suitable for conveying slurry with abrasive particles such as sand, cinder, tailings, etc. It is mainly used in metallurgy, mining, power, chemical industry, environmental protection, dredging, municipal engineering and other industries. It is easy to install and move. It also has high slag extraction efficiency and can safely run under bad working conditions. It is an ideal product to replace traditional vertical sump pump and submersible sewage pump.
