Our dedication to excellence and commitment to client satisfaction sets us apart in the industry. With over 20 years in manufacturing and supplying slurry pumps, Hongstone guarantees to provide expert advice, reliable products and responsible technical service to our customers.

Share on social media：

Product

AF Vertical Froth PumpAF Vertical Froth Pump

AF Vertical Froth Pump

Model
AF Slurry Pump
Discharge Size
2 inch (50 mm)~8inch (200 mm)
Suction Size
100 mm~250 mm
Flow Rate
7.6~575(m3/h)
Head
5~30(m)
Max. Eff η(%)
45~55
Impeller Diameter
229~700(mm)
Max Particle Size
0~10(mm)
Speed
250~1800(r/min)
Max. Power
15~110(KW)
NPSH
0 (m)
Weight
200~2000(kg)
More parameters
Details
AH Heavy Duty Slurry PumpAH Heavy Duty Slurry Pump

AH Heavy Duty Slurry Pump

Model
AH Slurry Pump
Discharge Size
1 inch (25 mm)~18inch (450 mm)
Suction Size
1.5 inch (38mm)~20inch (500 mm)
Flow Rate
10.8~5400(m3/h)
Head
5~68(m)
Max. Eff η(%)
35~85
Impeller Diameter
152~965(mm)
Max Particle Size
14~90(mm)
Speed
200~3400(r/min)
Max. Power
15~1200(KW)
NPSH
2~10 (m)
Weight
91~6400(kg)
More parameters
Details
AHF Horizontal Froth PumpAHF Horizontal Froth Pump

AHF Horizontal Froth Pump

Model
AHF Slurry Pump
Discharge Size
2 inch (50 mm)~6inch (150 mm)
Suction Size
3 inch (75mm)~8inch (200 mm)
Flow Rate
60~900(m3/h)
Head
10~60(m)
Max. Eff η
35~63(%)
Impeller Diameter
224~552(mm)
Max Particle Size
0~10(mm)
Speed
1000~2600(r/min)
Max. Power
5.5~350(KW)
NPSH
2~4.5 (m)
Weight
154~1600(kg)
More parameters
Details

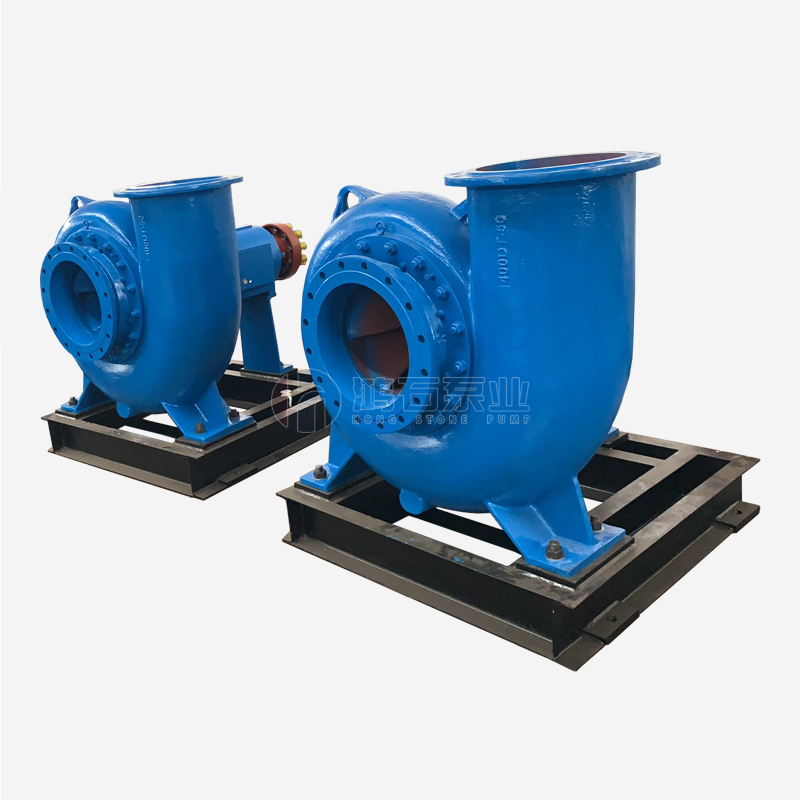

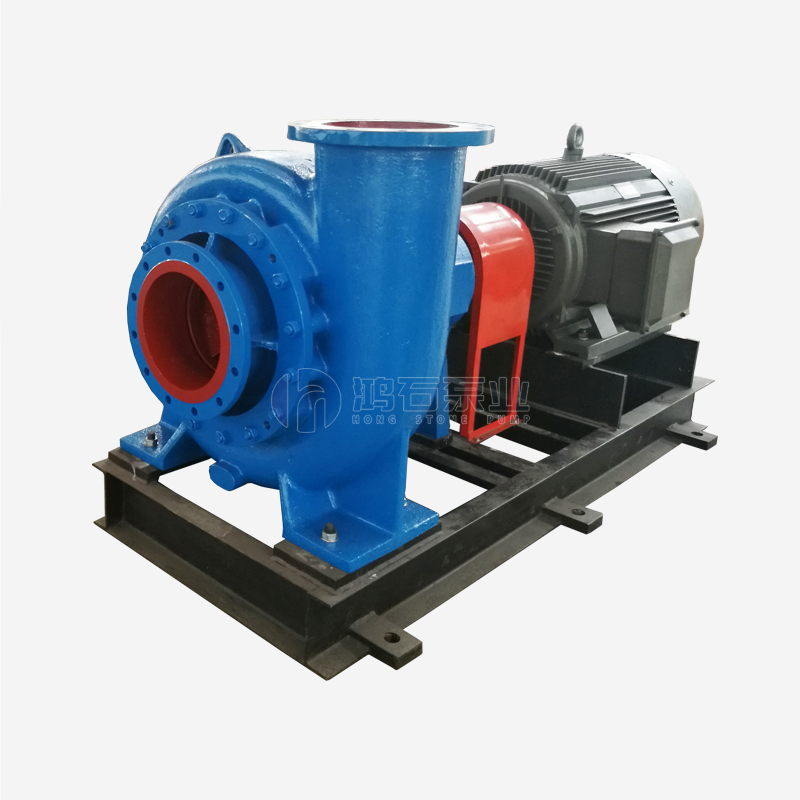

DT Series FGD PumpDT Series FGD Pump

DT Series FGD Pump

Model：
DT Desulfurization Pump
Discharge Size：
25~900 mm
Suction Size：
40~1200 mm
Flow Rate：
4.4~14000 m³/h
Head：
3.3~147 m
Max. Eff η(%)：
38~88 (%)
Impeller Diameter：
15~110 mm
Max Particle Size：
5~152 mm
Speed：
300~2950r/min
Max. Power：
4-1600 (kw)
NPSH：
1.5~6.5m
Weight：
89~11800 (kg)
More parameters
Details
Gravel Sand PumpGravel Sand Pump

Gravel Sand Pump

Model
Gravel Sand Pump
Discharge Size
4 inch (100 mm)~16inch (400 mm)
Suction Size
6 inch (150mm)~18inch (450 mm)
Flow Rate
36~4320(m3/h)
Head
5~80(m)
Max. Eff η(%)
58~73
Impeller Diameter
378~1067(mm)
Max Particle Size
0~150(mm)
Speed
250~1400(r/min)
Max. Power
60~1200(KW)
NPSH
1.5~10 (m)
Weight
460~11370(kg)
More parameters
Details
Horizontal Rubber Lined Slurry PumpHorizontal Rubber Lined Slurry Pump

Horizontal Rubber Lined Slurry Pump

Model
AHR Slurry Pump
Discharge Size
1 inch (25 mm)~18inch (450 mm)
Suction Size
1.5 inch (38mm)~20inch (500 mm)
Flow Rate
10.8~5400(m3/h)
Head
5~68(m)
Max. Eff η(%)
35~85
Impeller Diameter
152~965(mm)
Max Particle Size
14~90(mm)
Speed
200~3400(r/min)
Max. Power
15~1200(KW)
NPSH
2~10 (m)
Weight
91~6400(kg)
More parameters
Details
Rubber Liner Vertical Centrifugal Slurry PumpsRubber Liner Vertical Centrifugal Slurry Pumps

Rubber Liner Vertical Centrifugal Slurry Pumps

Model
SP Slurry Pump
Discharge Size
40 mm~350 mm
Suction Size
81mm~400 mm
Flow Rate
20~1500(m3/h)
Head
4~37(m)
Max. Eff η(%)
39~64
Impeller Diameter
188~580(mm)
Max Particle Size
12~65(mm)
Speed
350~2200(r/min)
Max. Power
15~250(KW)
NPSH
0 (m)
Weight
200~1180(kg)
More parameters
Details
SP Verical Slurry PumpsSP Verical Slurry Pumps

SP Verical Slurry Pumps

Model
SP vertical slurry pump
Discharge Size
40 mm~350 mm
Suction Size
81mm~450 mm
Flow Rate
20~1560(m3/h)
Head
4.5~37(m)
Max. Eff η(%)
39~64
Impeller Diameter
188~580(mm)
Max Particle Size
12~65(mm)
Speed
350~2200(r/min)
Max. Power
15~250(KW)
NPSH
0 (m)
Weight
288~4000(kg)
More parameters
Details

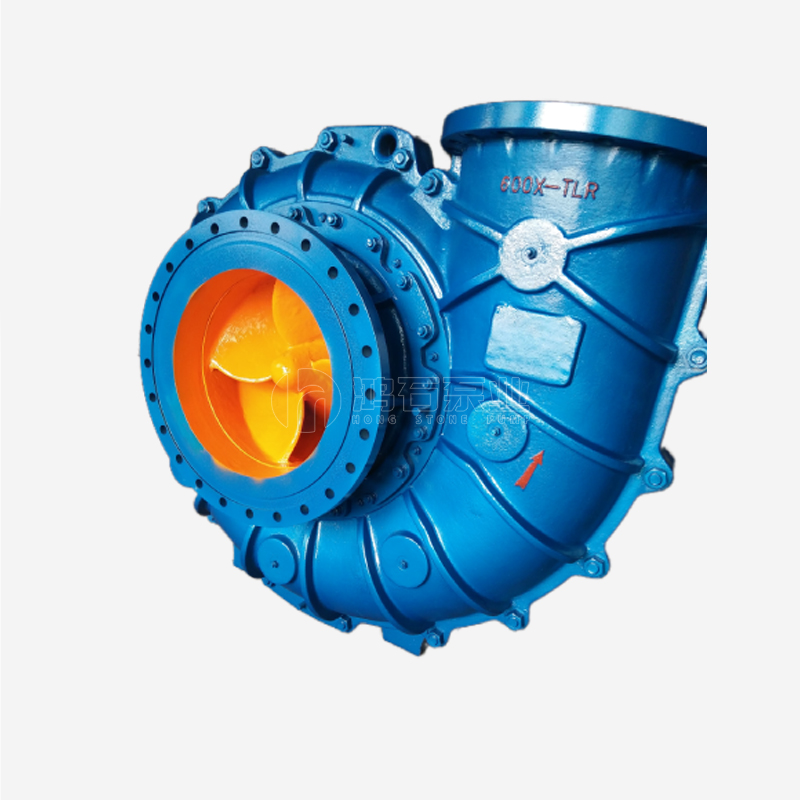

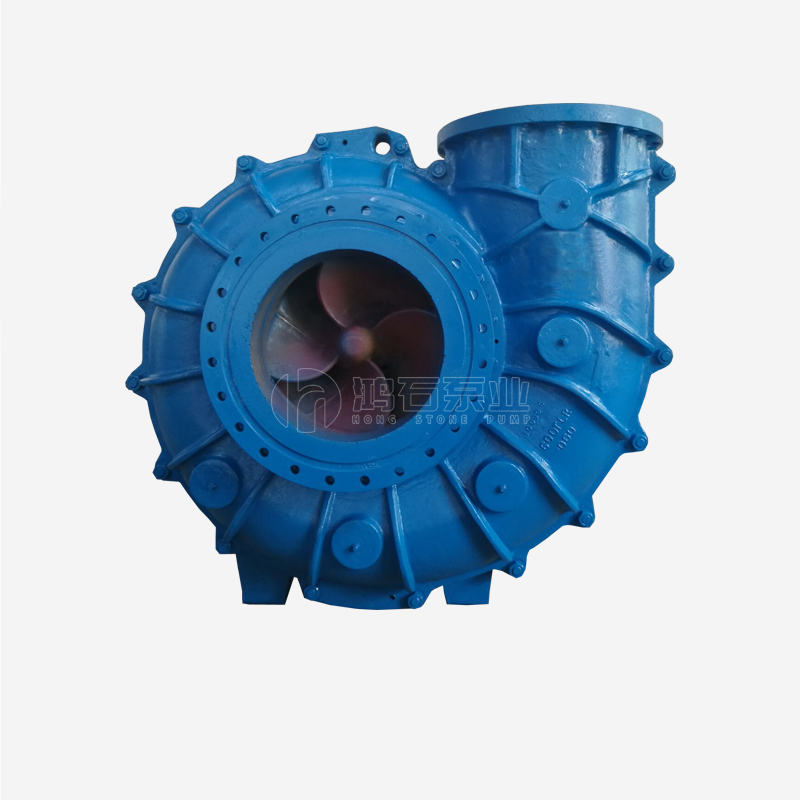

TL(R) FGD Slurry PumpTL(R) FGD Slurry Pump

TL(R) FGD Slurry Pump

Model
TL（R） Desulfurization Pump
Discharge Size
500~1000 mm
Suction Size
600~1200 mm
Flow Rate
1000~4500(m3/h)
Head
20~50(m)
Max. Eff η(%)
70~90 (%)
Impeller Diameter
700~1060 (mm)
Max Particle Size
0~10(mm)
Speed
400~750(r/min)
Max. Power
15~1600(KW)
NPSH
1~3 (m)
Weight
1000~10000(kg)
More parameters
Details
Wn (q) Series Dredge PumpWn (q) Series Dredge Pump

Wn (q) Series Dredge Pump

Model
Wn Dredge Pump
Discharge Size
300 mm~1020 mm
Suction Size
420 mm~1200 mm
Flow Rate
1800~28000(m3/h)
Head
20~80(m)
Max. Eff η(%)
74~88
Impeller Diameter
800~2000(mm)
Max Particle Size
241~350(mm)
Speed
230~550(r/min)
Max. Power
75~1500(KW)
NPSH
3.5~4.5 (m)
Weight
200~6400(kg)
More parameters
Details

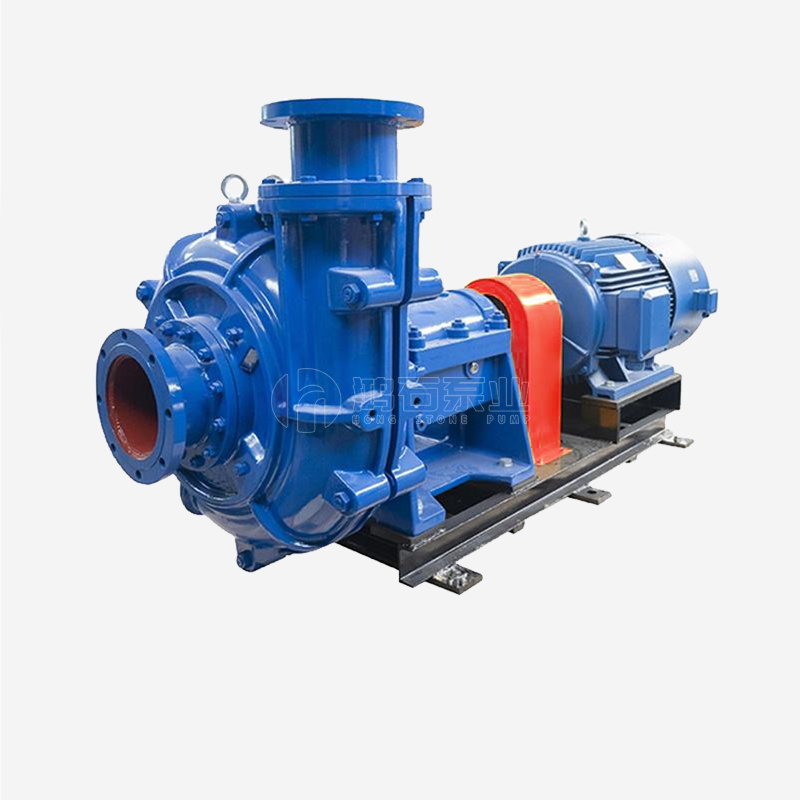

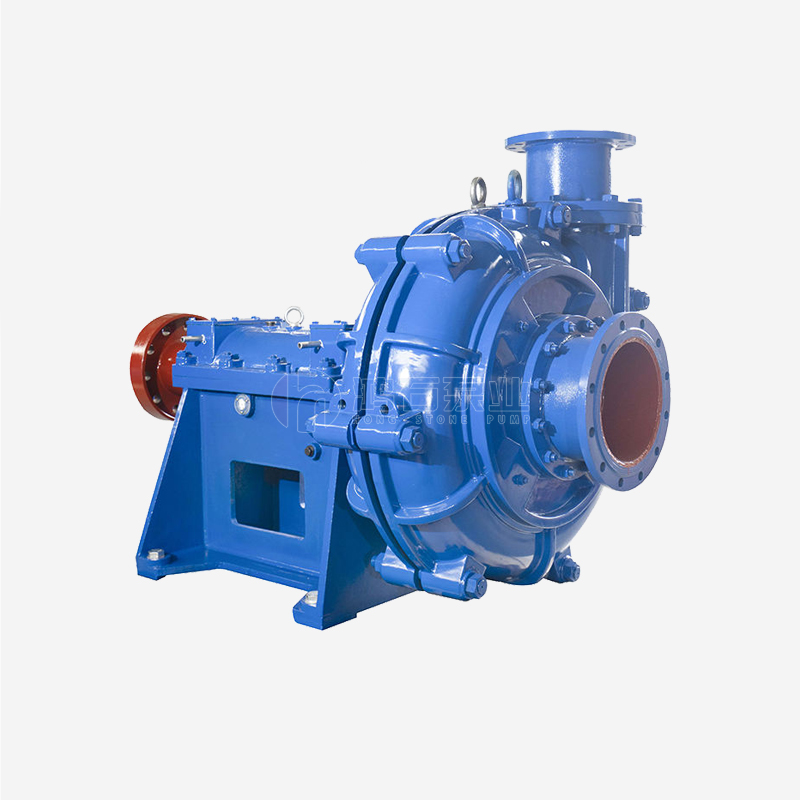

ZJ Series Slurry PumpZJ Series Slurry Pump

ZJ Series Slurry Pump

Model
ZJ Slurry Pump
Discharge Size
40 mm~400 mm
Suction Size
50 mm~450 mm
Flow Rate
5~2800(m3/h)
Head
9~110 (m)
Max. Eff η
33~81(%)
Impeller Diameter
190~1030(mm)
Max Particle Size
0~150(mm)
Speed
490~2900(r/min)
Max. Power
1.5~630(KW)
NPSH
1.4~7 (m)
Weight
230~5400(kg)
More parameters
Details
ZJQ Submersible Slag PumpZJQ Submersible Slag Pump

ZJQ Submersible Slag Pump

Model
ZJQ series pump
Discharge Size
50 mm~200 mm
Suction Size
50 mm~200 mm
Flow Rate
20~1188(m3/h)
Head
12~95(m)
Max. Eff η(%)
35~85
Impeller Diameter
200~600(mm)
Max Particle Size
0~90(mm)
Speed
980~2900(r/min)
Max. Power
4~330(KW)
NPSH
2~10 (m)
Weight
40~1000(kg)
More parameters
Details
