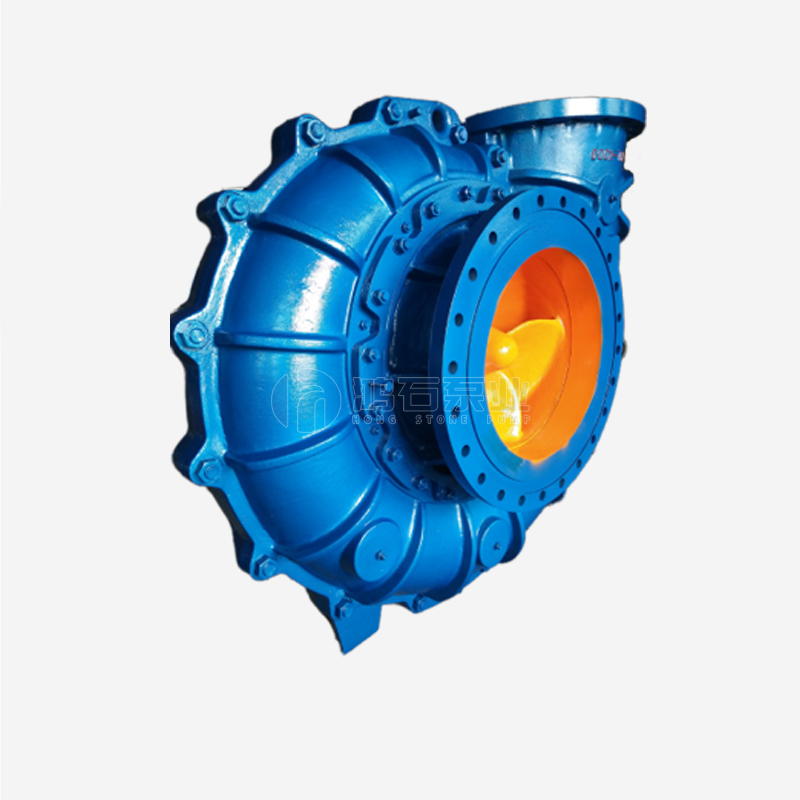

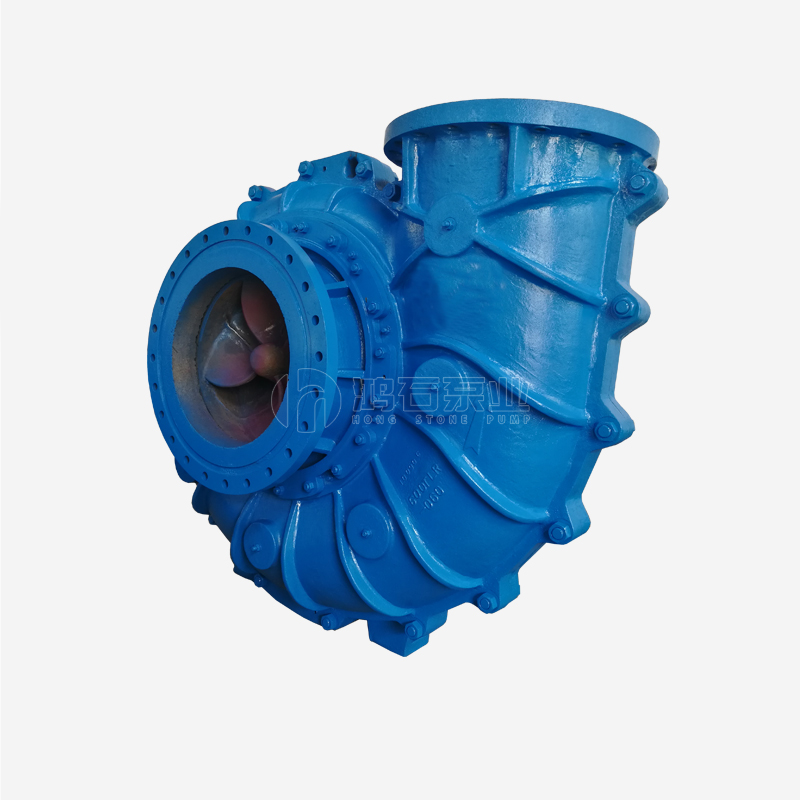

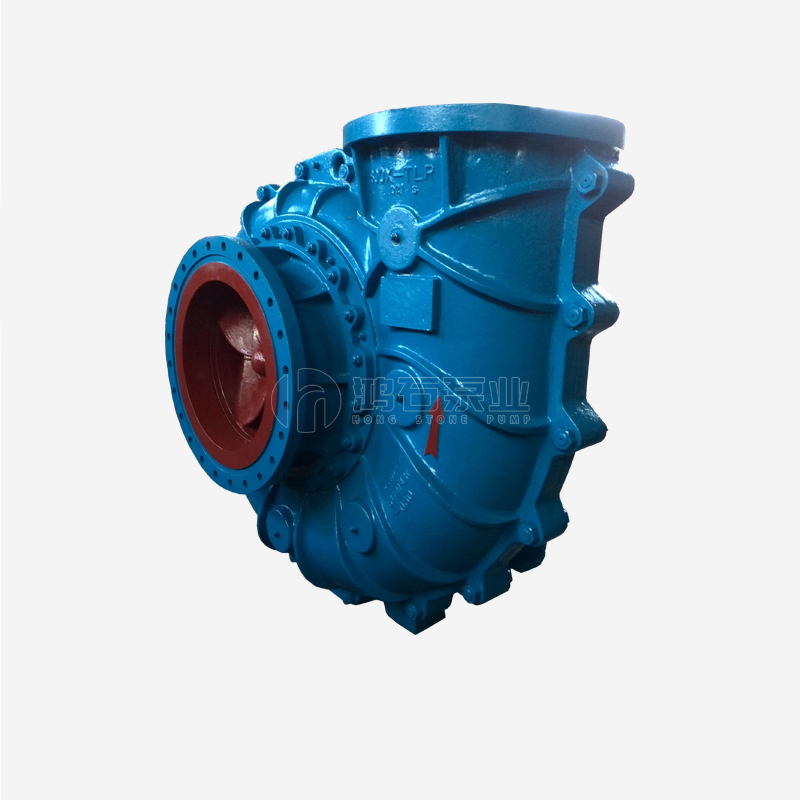

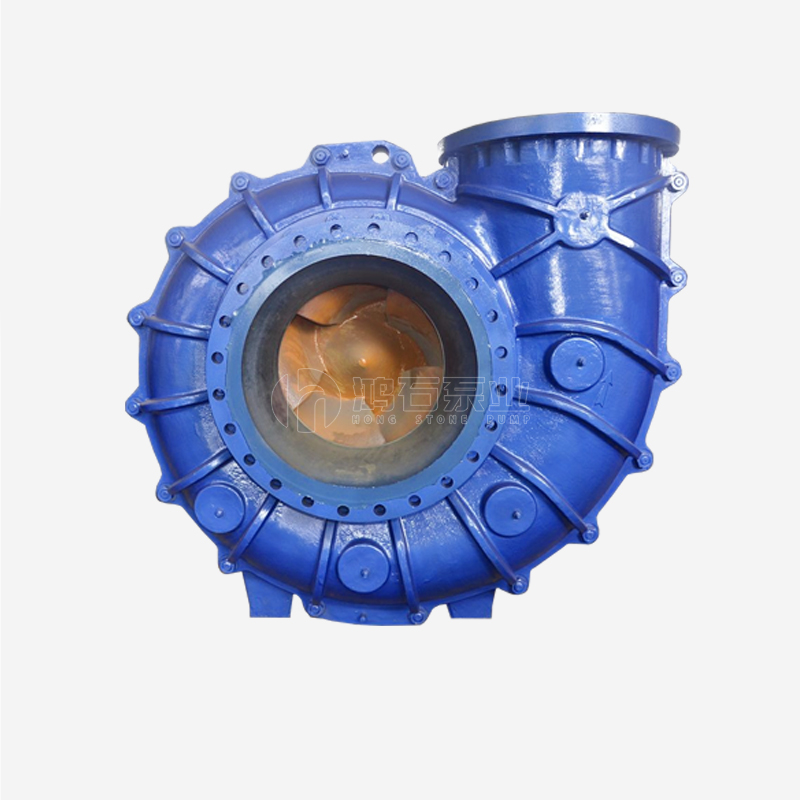

TL(R) FGD Slurry Pump

TL Flue Gas Desulfurization pump is a horizontal, axial suction, single-stage, single-suction, suspension, back-drawable structure.

Mechanical sealing is adopted integrating mechanical sealing which is specialized in FGD technology to ensure its operation.

Model：TL（R） Desulfurization Pump
Discharge Size：500~1000 mm
Suction Size：600~1200 mm
Flow Rate：1000~4500(m3/h)
Head：20~50(m)
Max. Eff η(%)：70~90 (%)
Impeller Diameter：700~1060 (mm)
Max Particle Size：0~10(mm)

Categories: FGD Slurry Pump, Metal Liner Slury Pumps

Inquiry

OEM/ODM Customization

Shi Meng

Contact the account manager for detailed quotes and services

+86 18931183432

sales@hongstonepump.com

We are now offering one-stop deep ODM/OEM cooperation to global brand and channel partners

Get to know more

Description

Design Philosophy

TL Flue Gas Desulfurization pump is a horizontal, axial suction, single-stage, single-suction, suspension, back-drawable structure.The single-layer shell has the characteristics of high efficiency and energy saving, corrosion resistance and wear resistance, small vibration, low noise, reliable operation, no leakage of shaft seal, long service life and convenient maintenance.

Product Information

FGD Slurry Pump.pdf

Attributes

Model：TL（R） Desulfurization Pump
Discharge Size：500~1000 mm
Suction Size：600~1200 mm
Flow Rate：1000~4500(m3/h)
Head：20~50(m)
Max. Eff η(%)：70~90 (%)
Impeller Diameter：700~1060 (mm)
Max Particle Size：0~10(mm)
Speed：400~750(r/min)
Max. Power：15~1600(KW)
NPSH：1~3 (m)
Weight：1000~10000(kg)

Structure

TL series flue gas desulfurization pump is a horizontal centrifugal pump. It is mainly used as the circulating pump for absorbent tower in FGD appliances.

It has such features: wide rang flowing capacity, high efficiency, energy saving. TL series desulfurization pump is matched by tight structure X bracket which can save much space. Meanwhile our company develops many kinds of material targeted on the pump for FGD.

In metal pump casing, impeller, volute liner, suction plate and back plate are all made of specialized anti-wear and anti- corrosive material, the suction cover are made of ductile iron with rubber.
