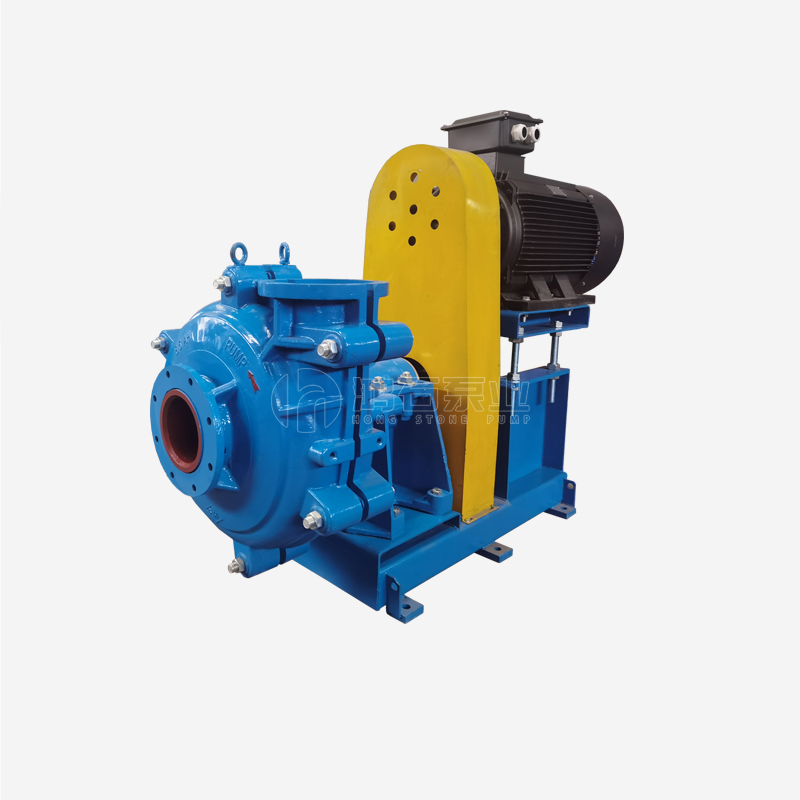

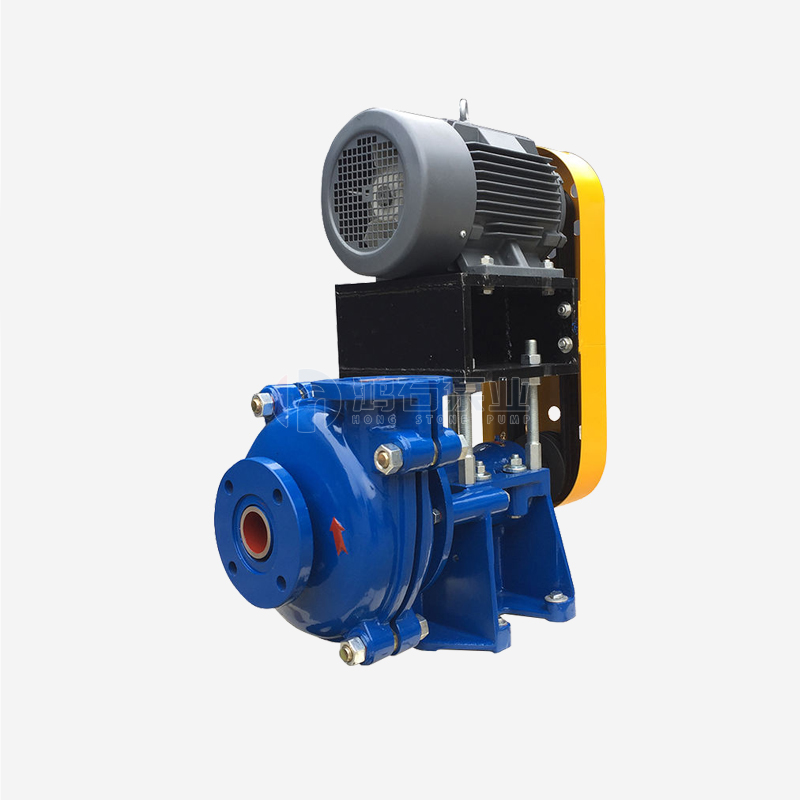

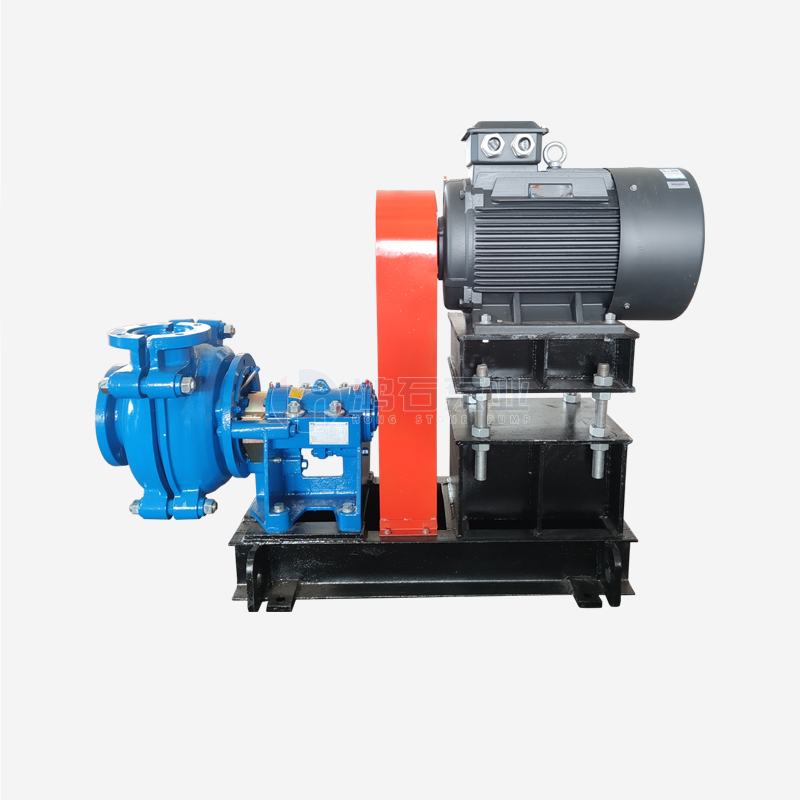

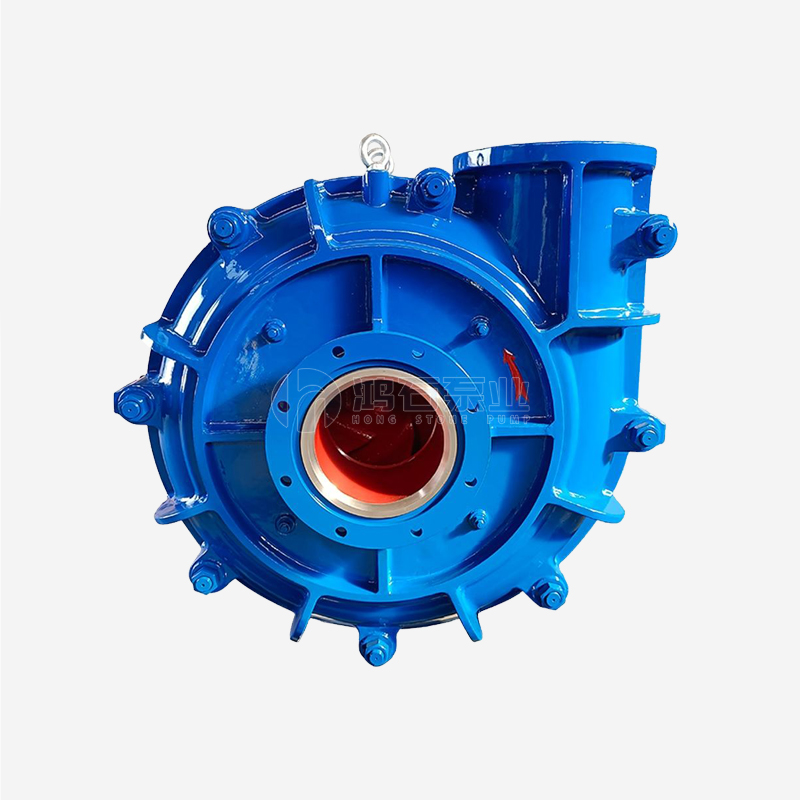

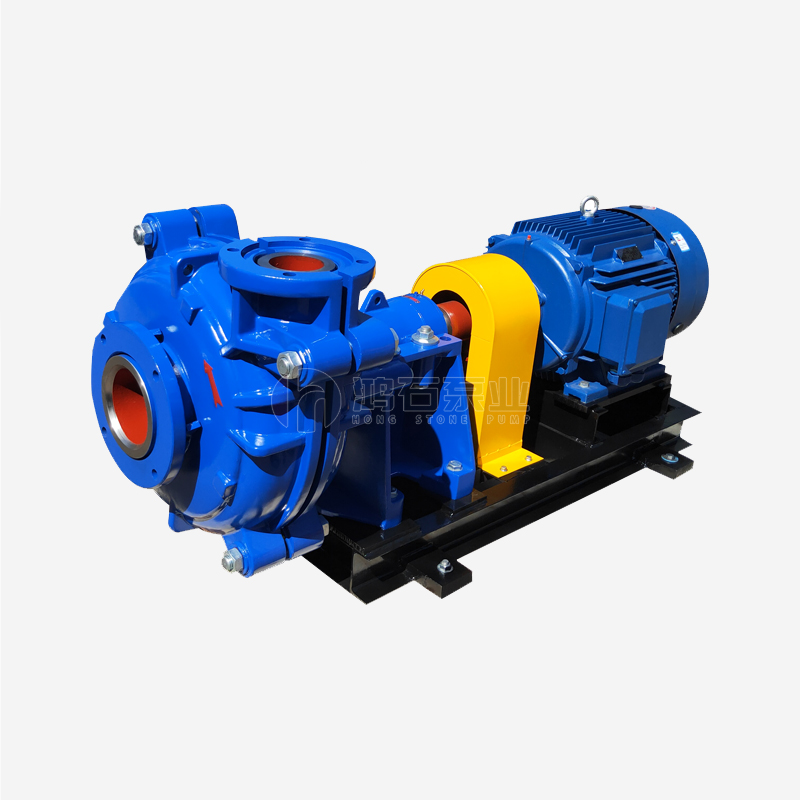

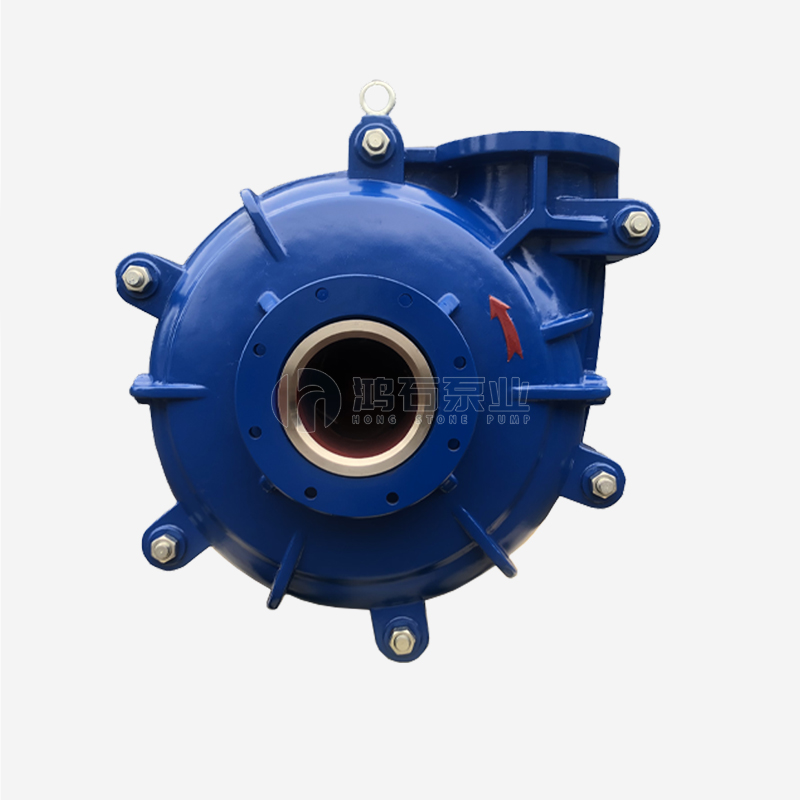

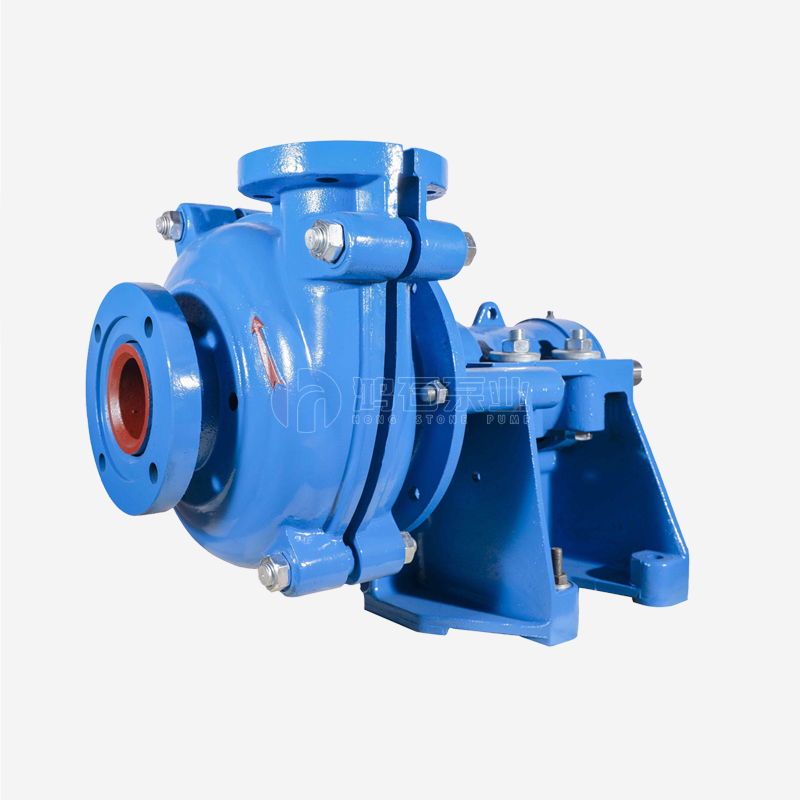

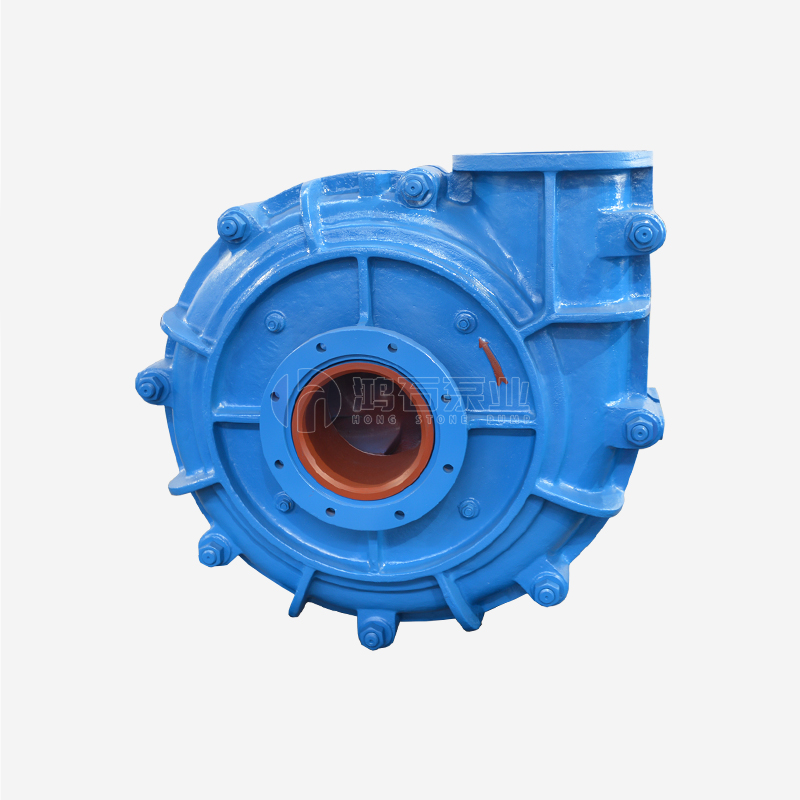

AH Heavy Duty Slurry Pump

AH slurry pump is a heavy-duty horizontal centrifugal pump designed for handling abrasive and high-density slurries in mining, metallurgy, coal, power, and other industrial applications. It offers exceptional performance, long wear life, and high efficiency.

Product Information

• Model：AH Slurry Pump
• Discharge Size：1 inch (25 mm)~18inch (450 mm)
• Suction Size：1.5 inch (38mm)~20inch (500 mm)
• Flow Rate：10.8~5400(m3/h)
• Head：5~68(m)
• Max. Eff η(%)：35~85
• Impeller Diameter：152~965(mm)
• Max Particle Size：14~90(mm)
• Speed：200~3400(r/min)
• Max. Power：15~1200(KW)
• NPSH：2~10 (m)
• Weight：91~6400(kg)

The discharge direction of the pump can be oriented to any 8 positions based on different installation condition.

​A centrifugal heavy duty rubber liner corrosion resistance mineral slurry pumps is mainly composed of 3 parts:

1.The anti-corrosion wet parts: (Impeller,Throatbush, Frame plate liner, Cover plate liner)  Thickened wet components for extended wear life.

2. Shaft seal parts: Sealing flexibility choice of gland, Expeller seal or mechanical seals.

3. Bearing assembly parts

Expeller Seal Assy:Expeller seal is an impeller force of reversed centrifugal force preventing slurry leakage. Expeller seal can be on the single stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.

Gland Seal Assy:Packing Seal is a general shaft seal.It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.It has the advantages of simple structure and convenient maintenance. But need to add shaft seal water, and should ensure enough water pressure and water yield.

Mechanical Seal Assy:Mechanical Seal is advanced sealing technique without sealing leakage, integrating construction, convenient installation & replacement, various constructions suit for all kinds of conditions.

​Bearing assembly advantage features:

1.A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.

2.Four through bolts are required to hold the cartridge type housing in the frame.

3.The removable cartridge-type bearing assembly facilitates easy on-site maintenance procedures.

4.Provided with hardened shaft sleeve to protect the shaft.

5.Grease purged piston rings to help seal contaminates out of bearing housing.
