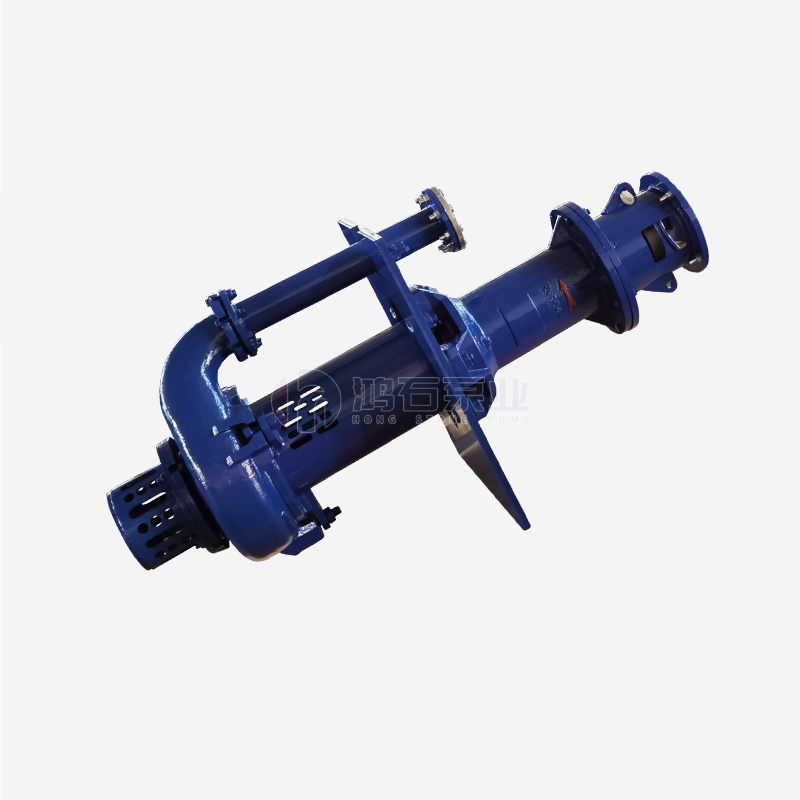

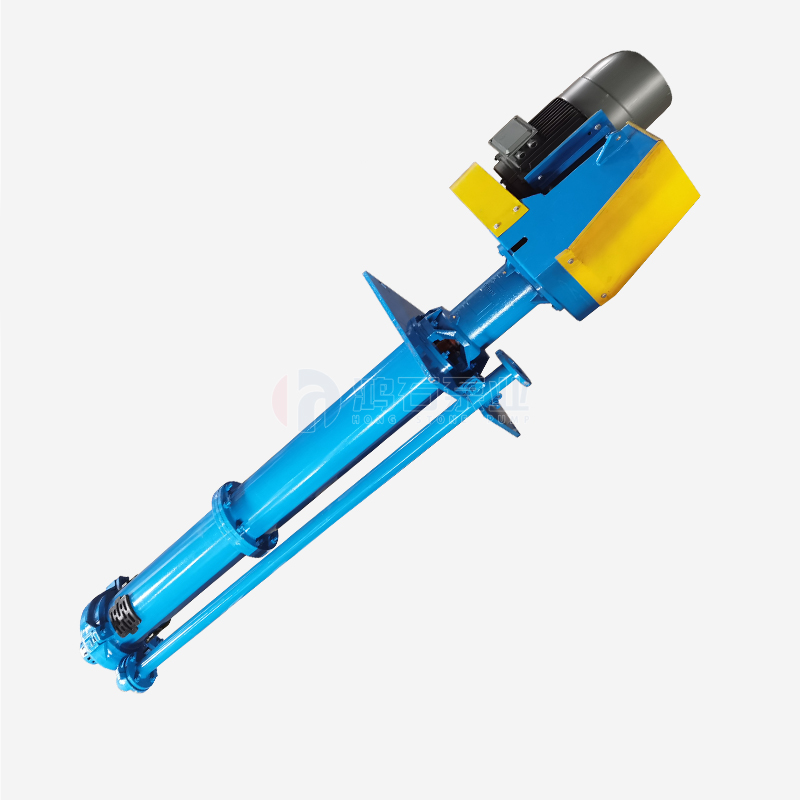

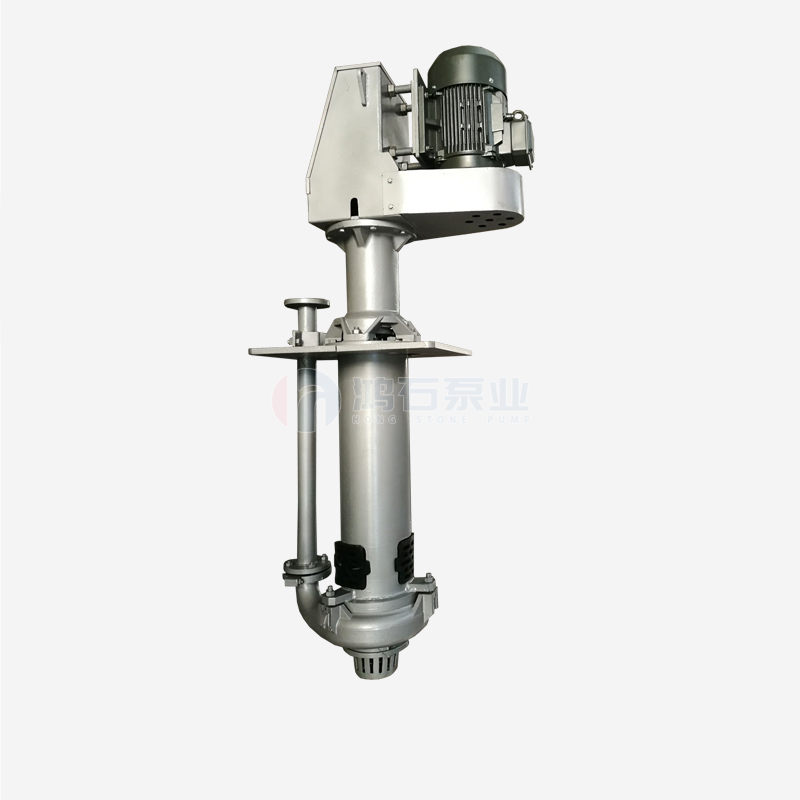

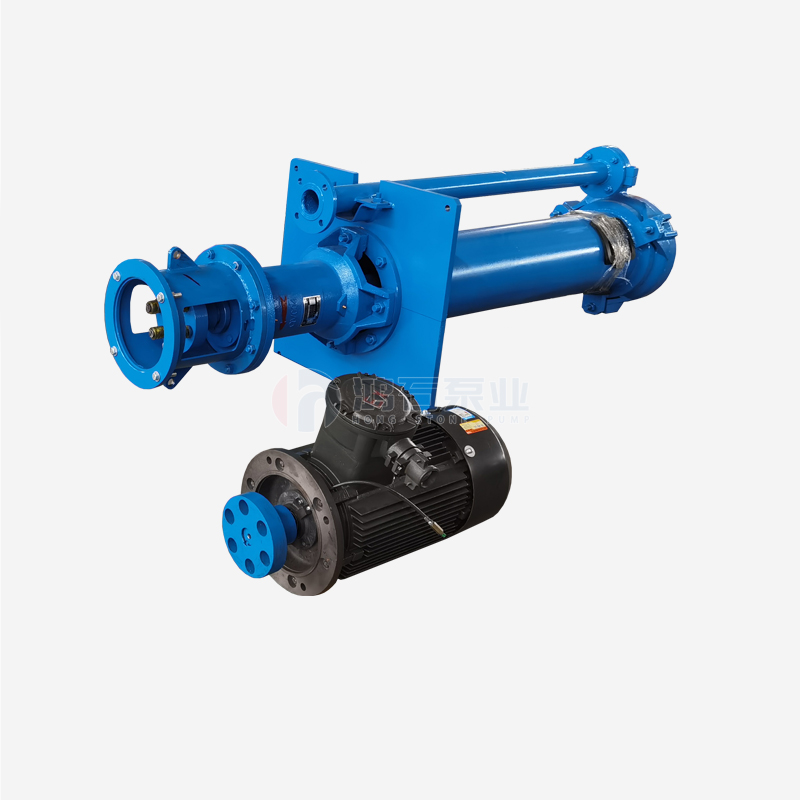

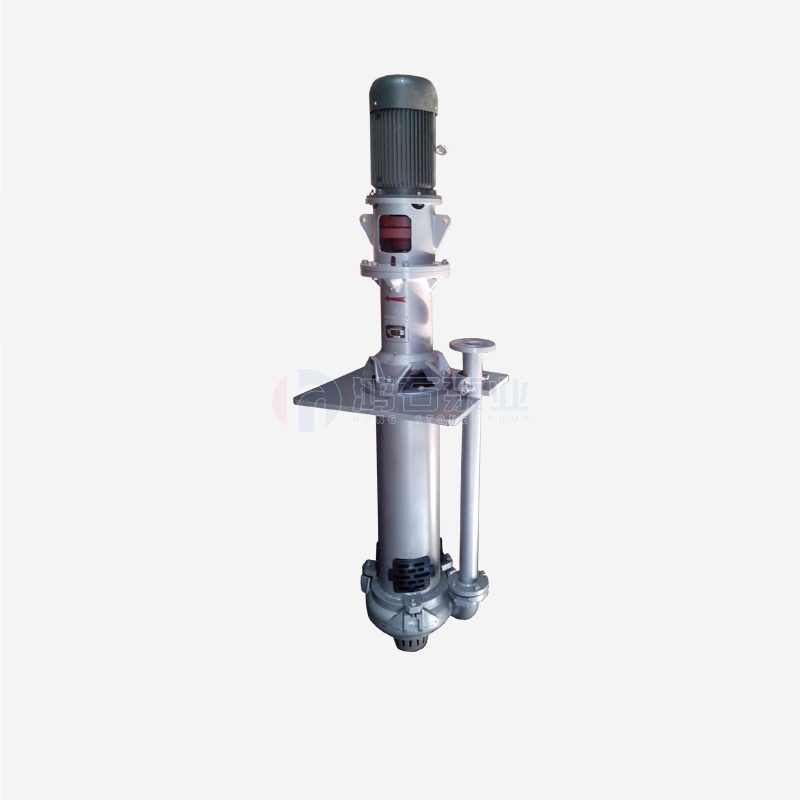

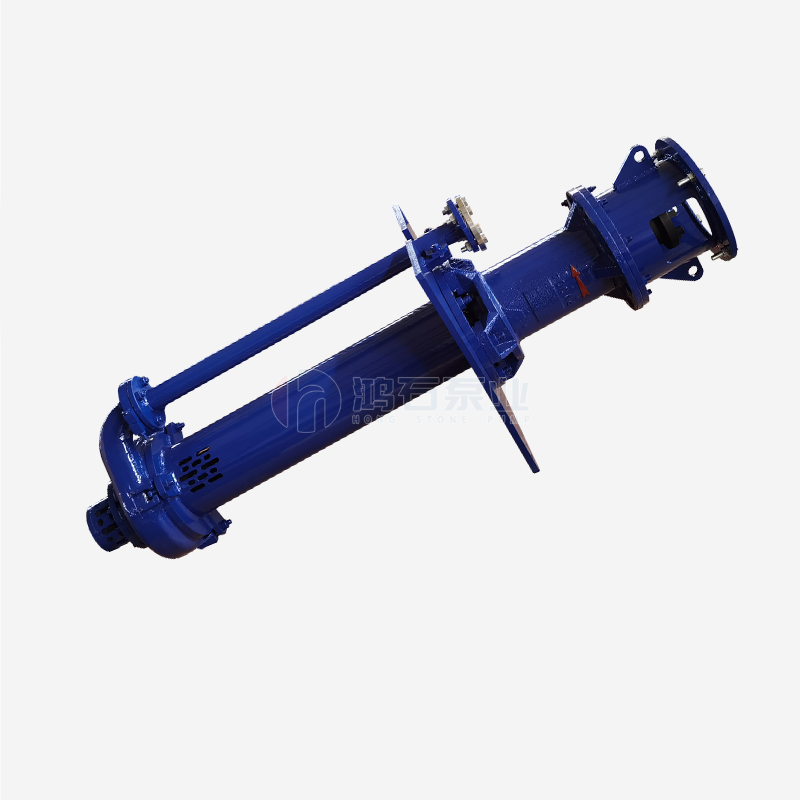

SP is a vertical slurry pump designed for conveying high-concentration, high-abrasive slurry

It is widely used in mining, metallurgy, power, and other industries
  • Model：SP vertical slurry pump
  • Discharge Size：40 mm~350 mm
  • Suction Size：81mm~450 mm
  • Flow Rate：20~1560(m3/h)
  • Head：4.5~37(m)
  • Max. Eff η(%)：39~64
  • Impeller Diameter：188~580(mm)
  • Max Particle Size：12~65(mm)

Categories: ,

Inquiry

OEM/ODM Customization

Shi Meng
Shi Meng
Contact the account manager for detailed quotes and services
+86 18931183432
sales@hongstonepump.com

We are now offering one-stop deep ODM/OEM cooperation to global brand and channel partners

Get to know more

Description

​Design Philosophy​​

SP is a vertical slurry pump designed for conveying high-concentration, high-abrasive slurry. It is widely used in mining, metallurgy, power, and other industries. These pumps do not need a shaft seal or sealing water. They can also be operated normally for insufficient suction duties.

Product Information

SP(R) Vertical Sump Slurry Pumps.pdf



Attributes

  • Model：SP vertical slurry pump
  • Discharge Size：40 mm~350 mm
  • Suction Size：81mm~450 mm
  • Flow Rate：20~1560(m3/h)
  • Head：4.5~37(m)
  • Max. Eff η(%)：39~64
  • Impeller Diameter：188~580(mm)
  • Max Particle Size：12~65(mm)
  • Speed：350~2200(r/min)
  • Max. Power：15~250(KW)
  • NPSH：0 (m)
  • Weight：288~4000(kg)

Structure

SP is a vertical slurry pump designed for conveying high-concentration, high-abrasive slurry. It is widely used in mining, metallurgy, power, and other industries. These pumps do not need a shaft seal or sealing water. They can also be operated normally for insufficient suction duties.

Related Recommended Products

AF Vertical Froth PumpAF Vertical Froth Pump

AF Vertical Froth Pump

Model
AF Slurry Pump
Discharge Size
2 inch (50 mm)~8inch (200 mm)
Suction Size
100 mm~250 mm
Flow Rate
7.6~575(m3/h)
Head
5~30(m)
Max. Eff η(%)
45~55
Impeller Diameter
229~700(mm)
Max Particle Size
0~10(mm)
Speed
250~1800(r/min)
Max. Power
15~110(KW)
NPSH
0 (m)
Weight
200~2000(kg)
More parameters
AH Heavy Duty Slurry PumpAH Heavy Duty Slurry Pump

AH Heavy Duty Slurry Pump

Model
AH Slurry Pump
Discharge Size
1 inch (25 mm)~18inch (450 mm)
Suction Size
1.5 inch (38mm)~20inch (500 mm)
Flow Rate
10.8~5400(m3/h)
Head
5~68(m)
Max. Eff η(%)
35~85
Impeller Diameter
152~965(mm)
Max Particle Size
14~90(mm)
Speed
200~3400(r/min)
Max. Power
15~1200(KW)
NPSH
2~10 (m)
Weight
91~6400(kg)
More parameters
ZJ Series Slurry PumpZJ Series Slurry Pump

ZJ Series Slurry Pump

Model
ZJ Slurry Pump
Discharge Size
40 mm~400 mm
Suction Size
50 mm~450 mm
Flow Rate
5~2800(m3/h)
Head
9~110 (m)
Max. Eff η
33~81(%)
Impeller Diameter
190~1030(mm)
Max Particle Size
0~150(mm)
Speed
490~2900(r/min)
Max. Power
1.5~630(KW)
NPSH
1.4~7 (m)
Weight
230~5400(kg)
More parameters
AHF Horizontal Froth PumpAHF Horizontal Froth Pump

AHF Horizontal Froth Pump

Model
AHF Slurry Pump
Discharge Size
2 inch (50 mm)~6inch (150 mm)
Suction Size
3 inch (75mm)~8inch (200 mm)
Flow Rate
60~900(m3/h)
Head
10~60(m)
Max. Eff η
35~63(%)
Impeller Diameter
224~552(mm)
Max Particle Size
0~10(mm)
Speed
1000~2600(r/min)
Max. Power
5.5~350(KW)
NPSH
2~4.5 (m)
Weight
154~1600(kg)
More parameters
