Our dedication to excellence and commitment to client satisfaction sets us apart in the industry. With over 20 years in manufacturing and supplying slurry pumps, Hongstone guarantees to provide expert advice, reliable products and responsible technical service to our customers.

Share on social media:

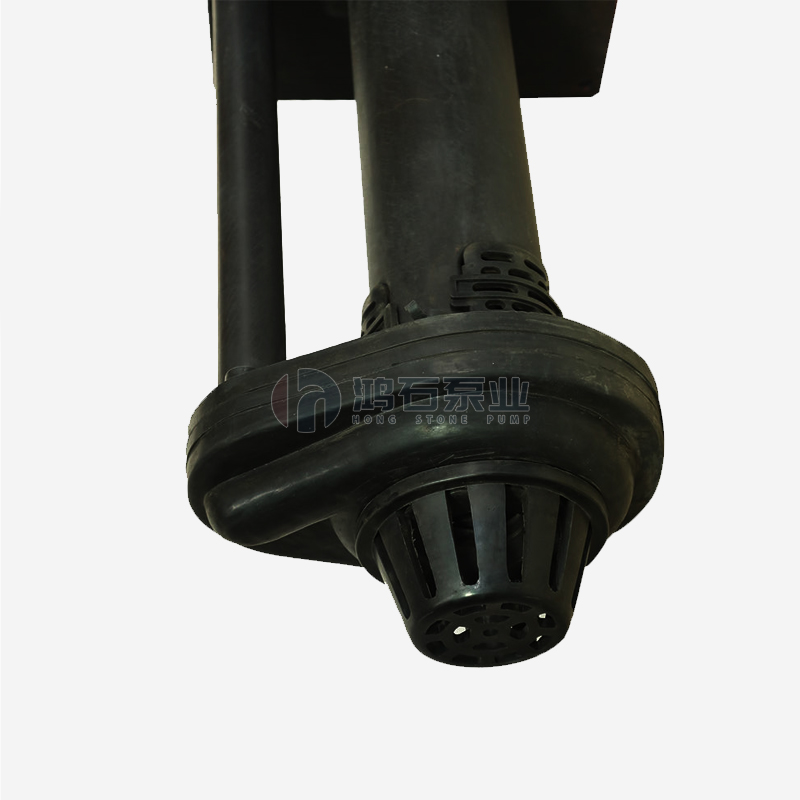

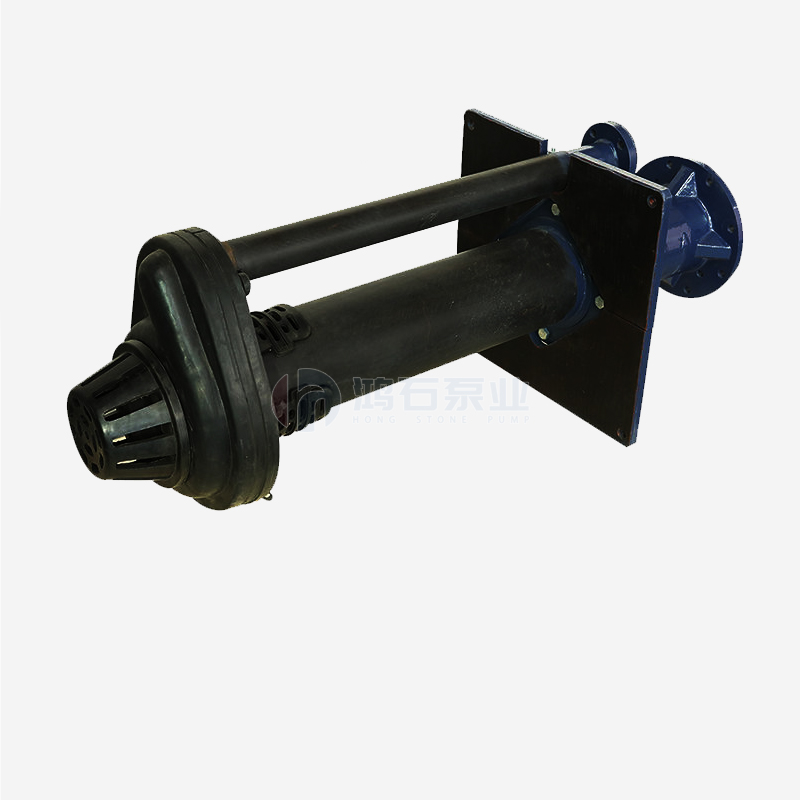

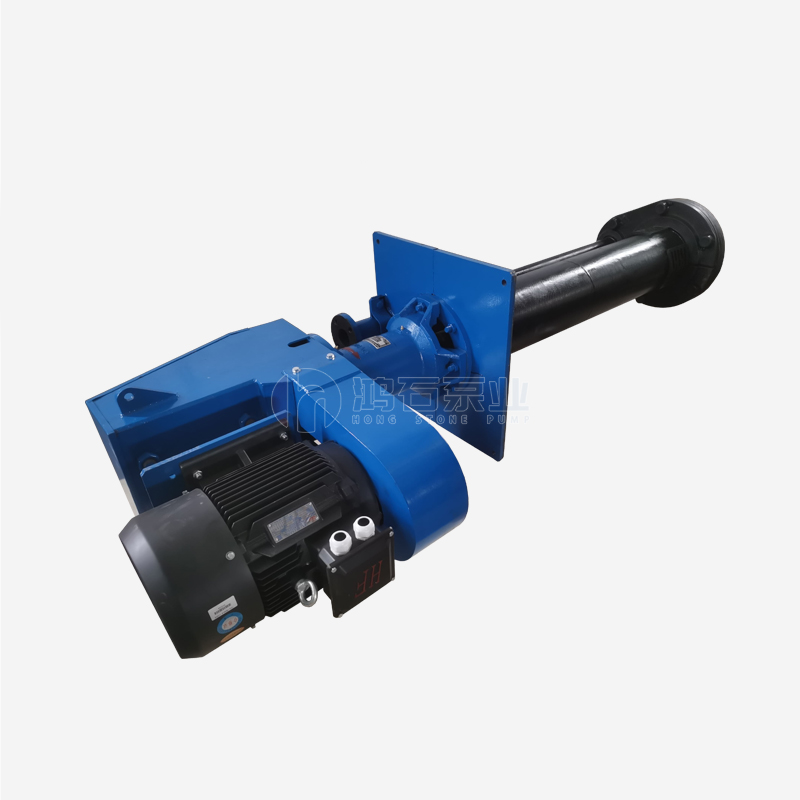

Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps
Rubber Liner Vertical Centrifugal Slurry Pumps

Rubber Liner Vertical Centrifugal Slurry Pumps

The SPR series is ideal for pumping corrosive and mildly abrasive slurries with fine particles

Vertical structure design, no need for shaft seal and sealing water, reducing maintenance costs
  • Model:SP Slurry Pump
  • Discharge Size:40 mm~350 mm
  • Suction Size:81mm~400 mm
  • Flow Rate:20~1500(m3/h)
  • Head:4~37(m)
  • Max. Eff η(%):39~64
  • Impeller Diameter:188~580(mm)
  • Max Particle Size:12~65(mm)

Categories: ,

Inquiry

OEM/ODM Customization

sales@hongstonepump.com

We are now offering one-stop deep ODM/OEM cooperation to global brand and channel partners

Get to know more

Description

​Design Philosophy​​

All wetted parts submerged in the slurry are protected with replaceable rubber liners, providing exceptional corrosion and abrasion resistance. The SPR series is ideal for pumping corrosive and mildly abrasive slurries with fine particles.

1. No Shaft Seal Required

  • Operates without mechanical seals or packing seals.

  • No need for seal flushing water.

  • Reduces maintenance cost and eliminates seal failure risks.

2. Reliable Operation Under Poor Suction Conditions

  • The cantilevered design allows the pump to run dry for short periods.

  • Suitable for sumps where liquid levels fluctuate.

  • Maintains stable pumping performance even when suction supply is limited.

3. Rubber-Lined Wetted Parts

  • All submerged components are protected with high-quality rubber liners.

  • Excellent resistance to corrosion and fine-particle abrasion.

  • Suitable for handling corrosive, fine, or medium-density slurries.

Product Information

SP(R) Vertical Sump Slurry Pumps.pdf



Attributes

  • Model:SP Slurry Pump
  • Discharge Size:40 mm~350 mm
  • Suction Size:81mm~400 mm
  • Flow Rate:20~1500(m3/h)
  • Head:4~37(m)
  • Max. Eff η(%):39~64
  • Impeller Diameter:188~580(mm)
  • Max Particle Size:12~65(mm)
  • Speed:350~2200(r/min)
  • Max. Power:15~250(KW)
  • NPSH:0 (m)
  • Weight:200~1180(kg)

Structure

Product Advantages

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 High Head, High Efficiency: Multi level impeller design effectively improves the head and pumping capacity.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Convenient Maintenance: Vertical structure design, no need for shaft seal and sealing water, reducing maintenance costs.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Strong Adaptability: According to the level of the slurry pool, different lengths of pump drive shafts or suction tubes can be selected to adapt to a variety of working conditions.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Advanced Technology: Introducing foreign advanced slurry pump technology with excellent performance.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 High Reliability: High chromium cast iron and rubber materials are used to improve the wear resistance or corrosion resistance of the impeller and pump casing.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Environmental Protection And Energy Saving: Low noise and low vibration design to reduce the impact on the working environment.
